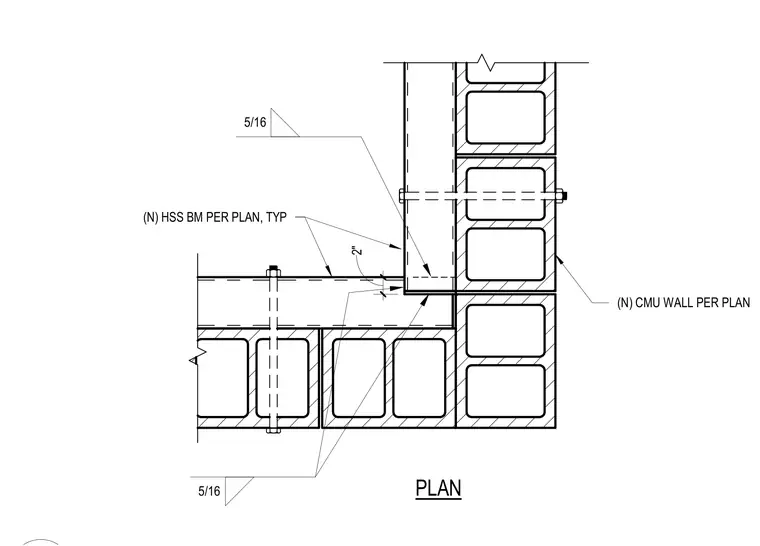

A two-inch clearance is maintained between new hollow structural section steel beams and new concrete masonry unit walls. Five-sixteenths inch fillet welds secure the steel assembly as specified on plan typical. Through-bolts anchor the members through the concrete masonry unit wall cores.
