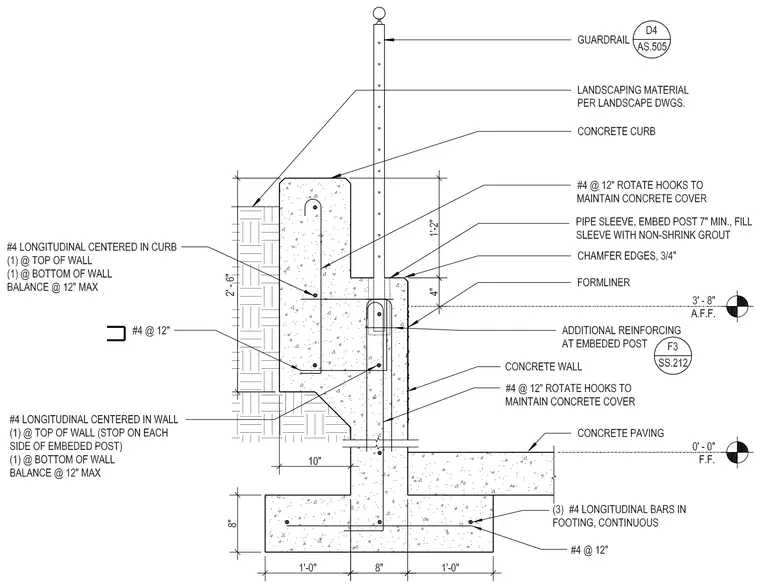

This concrete planter curb assembly features a guardrail post anchored inside an embedded pipe sleeve filled with non-shrink grout. The structural support consists of a concrete wall and footing reinforced with number four longitudinal bars and transverse ties spaced at twelve inches maximum. Landscaping material fills the planter side per landscape drawings, while the opposite side transitions to a concrete paving slab at finished floor level. Additional reinforcing steel surrounds the embedded post, and chamfered edges accent the concrete profile.
