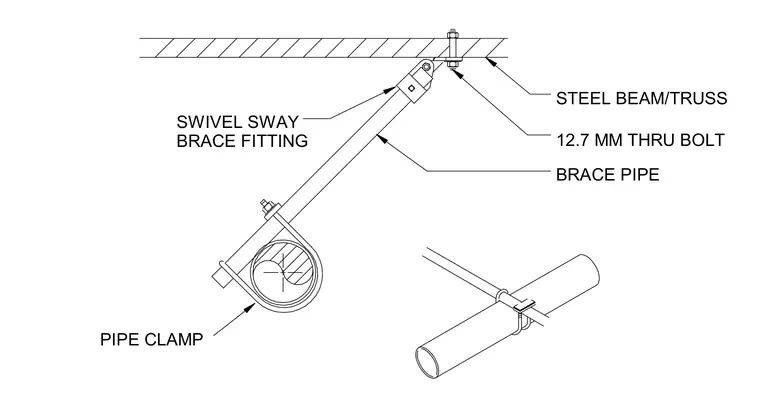

A brace pipe connects to an overhead steel beam or truss through a swivel sway brace fitting and a twelve-point-seven millimeter through bolt. The lower end of the brace pipe secures to the fire sprinkler or service pipe using a wrap-around pipe clamp. The swivel fitting accommodates angular alignment between the structural support and the braced piping.
SWIVEL SWAY BRACE FITTING PIPE CLAMP STEEL BEAM/TRUSS BRACE PIPE 12.7 MM THRU BOLT
