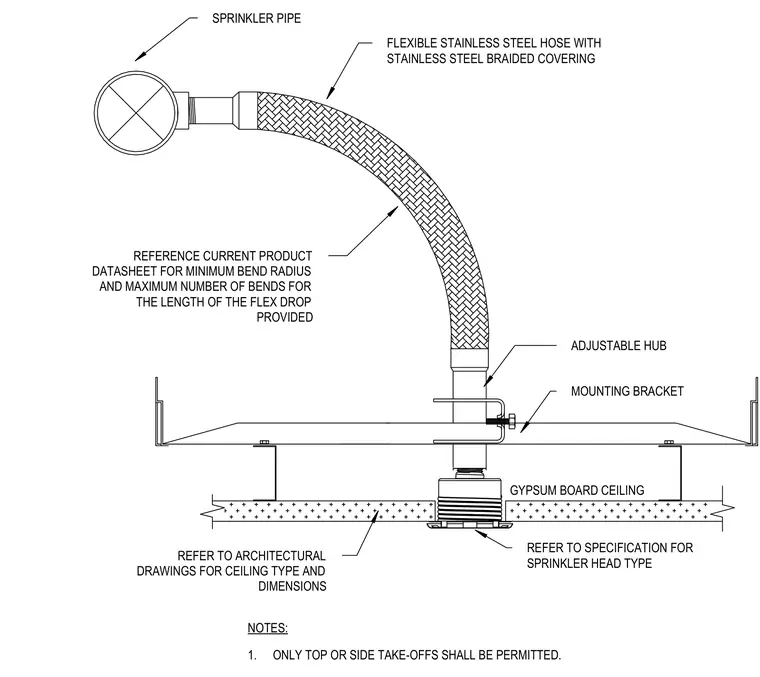

A flexible stainless steel hose with a braided stainless steel covering connects to the main sprinkler pipe utilizing either a top or side take-off. The hose routes downward to an adjustable hub secured by a mounting bracket attached to the ceiling suspension system above a gypsum board ceiling. The sprinkler head type is determined by project specifications, and ceiling integration must coordinate with architectural drawings. Minimum bend radii and maximum bend counts must comply with the current product datasheet for the specific hose length provided.
FLEXIBLE STAINLESS STEEL HOSE WITH STAINLESS STEEL BRAIDED COVERING ADJUSTABLE HUB MOUNTING BRACKET REFER TO SPECIFICATION FOR SPRINKLER HEAD TYPE REFER TO ARCHITECTURAL DRAWINGS FOR CEILING TYPE AND DIMENSIONS SPRINKLER PIPE REFERENCE CURRENT PRODUCT DATASHEET FOR MINIMUM BEND RADIUS AND MAXIMUM NUMBER OF BENDS FOR THE LENGTH OF THE FLEX DROP PROVIDED NOTES: 1. ONLY TOP OR SIDE TAKE-OFFS SHALL BE PERMITTED. GYPSUM BOARD CEILING
