Fire Alarm Pull Station Wiring and Terminal Connections

Elements

About this detail

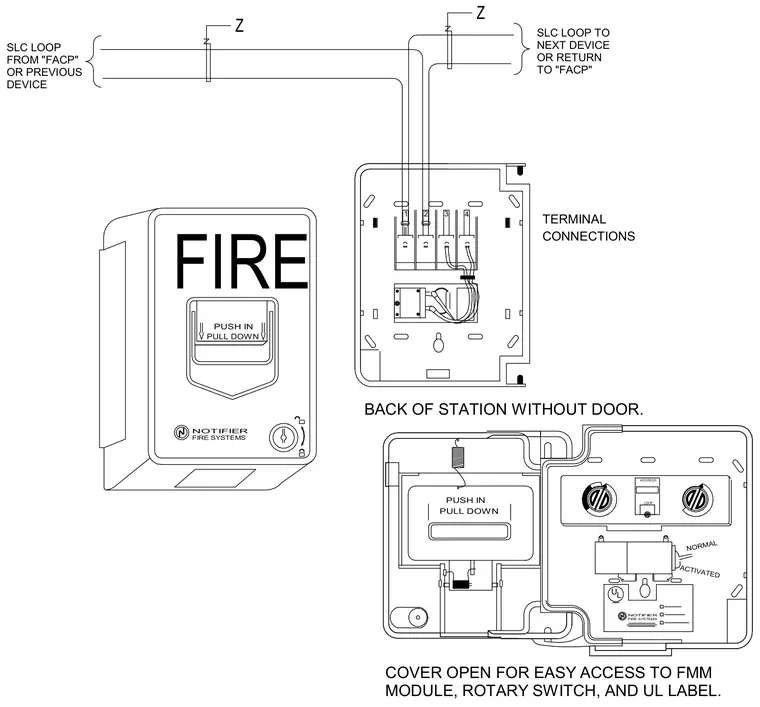

The fire alarm pull station assembly connects to the signaling line circuit loop from the fire alarm control panel or previous device, and routes to the next device. Terminal connections link the internal wiring to the FMM module and rotary address switches. The station housing opens to reveal the addressable components, normal and activated indicators, and the Underwriters Laboratories label.
