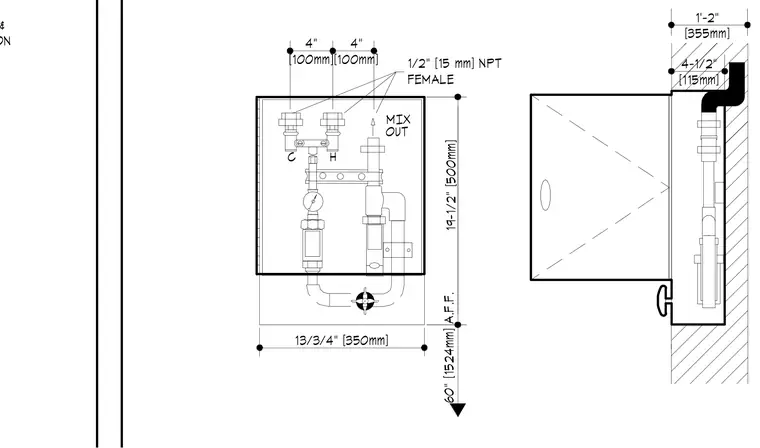

Installation dimensions and piping layout for a recessed hose reel control box set into a wall. The enclosure measures 13-3/4 inches wide by 19-1/2 inches high, positioned at 60 inches above the finished floor to the bottom of the box, with a total depth of 1-2 inches. Internal plumbing features half-inch National Pipe Thread female connections for hot and water supplies, a mixed output line, and associated valves and fittings configured for wall integration.
13/3/4" [350mm] 4" [100mm] H C 60" [1524mm] A.F.F. 19-1/2" [500mm] 1'-2" [355mm] 4-1/2" [115mm] 1/2" [15 mm] NPT FEMALE OUT MIX 4" [100mm] FLOOR PLUMBING & CONNECTION
