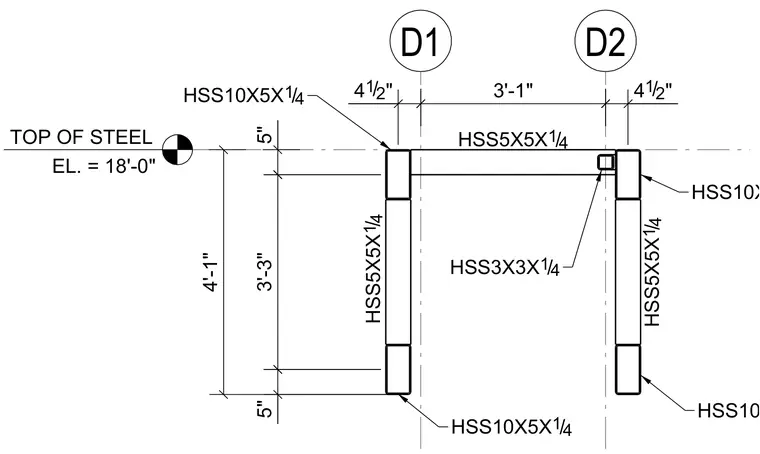

A vertical hood post framing assembly is constructed with hollow structural steel sections. The vertical members utilize HSS 10x5x1/4 and HSS 5x5x1/4 profiles, tied across with an HSS 5x5x1/4 horizontal member and an internal HSS 3x3x1/4 section. The assembly is dimensioned with a 3'-1" clear span between grid lines D1 and D2, and a vertical height of 4'-1" referenced from a top of steel elevation of 18'-0".
D2 D1 4'-1" 5" 3'-3" 5" 4 1 2 / " 3'-1" 4 1 2 / " TOP OF STEEL EL. = 18'-0" HSS3X3X 1 4 / HSS10X5X 1 4 / HSS10X5X 1 4 / HSS10X5X HSS10X5X HSS5X5X 1 4 / HSS5X5X 14 / HSS5X5X 14 /
