A six-inch concrete slab rests over non-compressible high-density foam fill, similar to a typical housekeeping pad detail at Level 4 at elevation 47 feet 8 inches. Three hollow structural section beams are located at the top of the curtain wall per plan. The assembly ties into structural framing and supports the upper level edge condition adjacent to the exterior wall system.

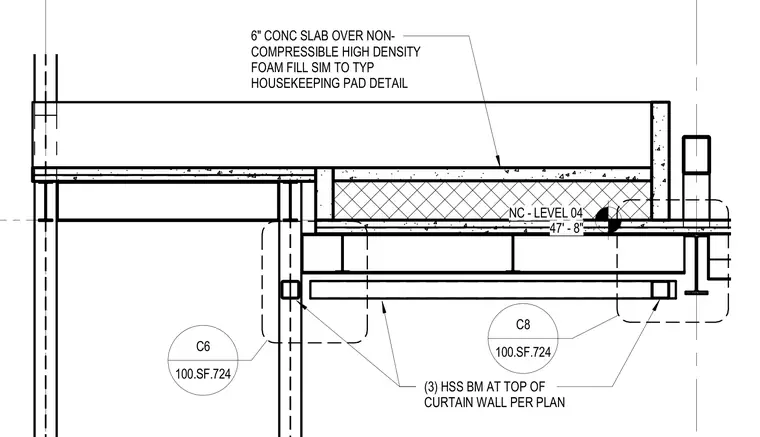

NC - LEVEL 04 47' - 8" 6" CONC SLAB OVER NON- COMPRESSIBLE HIGH DENSITY FOAM FILL SIM TO TYP HOUSEKEEPING PAD DETAIL (3) HSS BM AT TOP OF CURTAIN WALL PER PLAN 100.SF.724 C6 100.SF.724 C8
