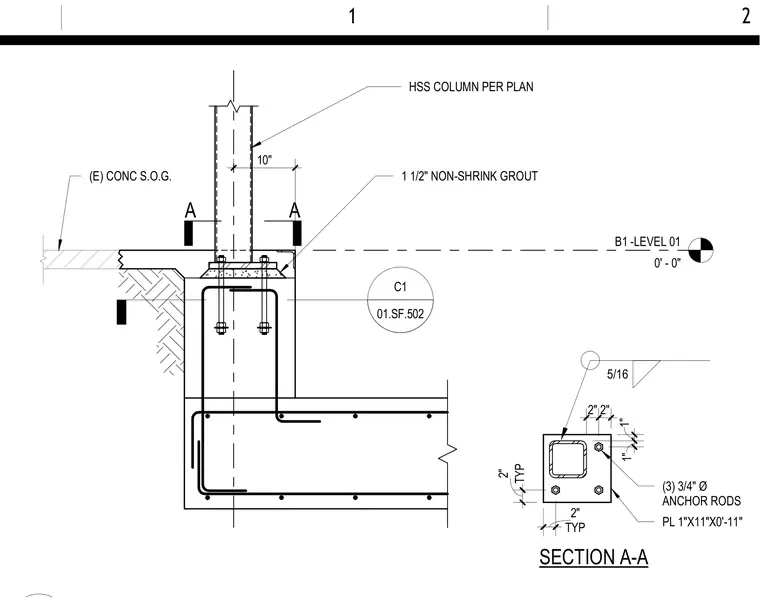

A hollow structural section column bears on a base plate secured by three three-quarter-inch diameter anchor rods embedded in a concrete foundation. A one-and-a-half-inch non-shrink grout layer sits beneath the base plate over the concrete footing, adjacent to the existing concrete slab on grade. The section view details the base plate dimensions of one inch by eleven inches by zero feet eleven inches with fillet welds.
B1 -LEVEL 01 0' - 0" C1 01.SF.502 A A 2" 2" 1" 1" TYP 2" TYP 2" (3) 3/4" Ø ANCHOR RODS PL 1"X11"X0'-11" SECTION A-A HSS COLUMN PER PLAN (E) CONC S.O.G. 5/16 1 1/2" NON-SHRINK GROUT 10" 2 1
