Fire Protection · F-CHC6Y

NFPA 13 Area Reduction

Materials

Elements

About this detail

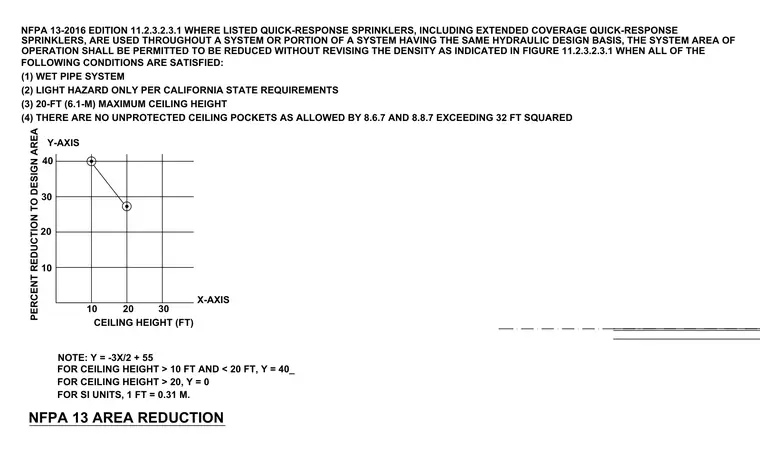

This diagram provides the hydraulic design area reduction criteria for quick-response fire sprinkler systems per NFPA 13-2016 Edition 11.2.3.2.3.1. It plots the percent reduction to the design area on the y-axis against ceiling height in feet on the x-axis for wet pipe systems meeting light hazard requirements. The application requires a maximum 20-foot ceiling height and prohibits unprotected ceiling pockets exceeding 32 square feet. Mathematical formulas define the reduction curve based on specific ceiling height ranges.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
