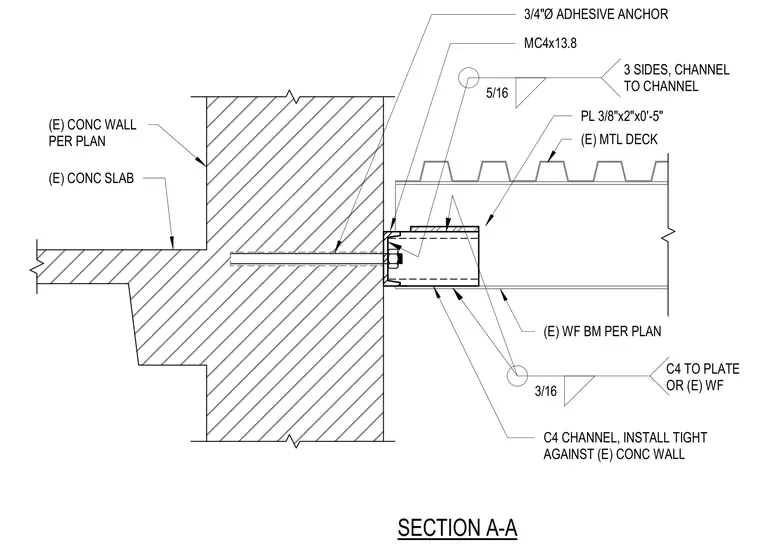

An MC4x13.8 steel channel is installed tight against an existing concrete wall per plan. The channel is secured with a three-quarter-inch diameter adhesive anchor and connected to an existing wide-flange beam sized per plan using a three-sixteenth-inch fillet weld at the channel to plate or wide-flange. A three-eighth-inch by two-inch by zero-foot-five-inch steel plate is welded to the channel using a five-sixteenth-inch fillet weld on three sides. The assembly ties into an existing metal deck supporting an existing concrete slab.
SECTION A-A PL 3/8"x2"x0'-5" (E) WF BM PER PLAN C4 CHANNEL, INSTALL TIGHT AGAINST (E) CONC WALL MC4x13.8 3/4"Ø ADHESIVE ANCHOR 5/16 3 SIDES, CHANNEL TO CHANNEL (E) MTL DECK (E) CONC SLAB (E) CONC WALL PER PLAN 3/16 C4 TO PLATE OR (E) WF
