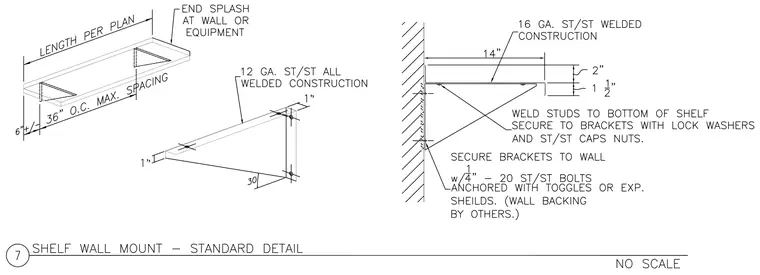

A stainless steel wall-mounted shelf assembly constructed from 16-gauge stainless steel welded elements with an overall depth of 14 inches and an end splash at the wall or equipment. The shelf is supported by 12-gauge stainless steel all-welded brackets spaced at a maximum of 36 inches on center. Weld studs are secured to the bottom of the shelf and attached to the brackets using lock washers and stainless steel cap nuts. The brackets are anchored to the wall with 1/4-20 stainless steel bolts using toggles or expansion shields, with wall backing provided by others.
