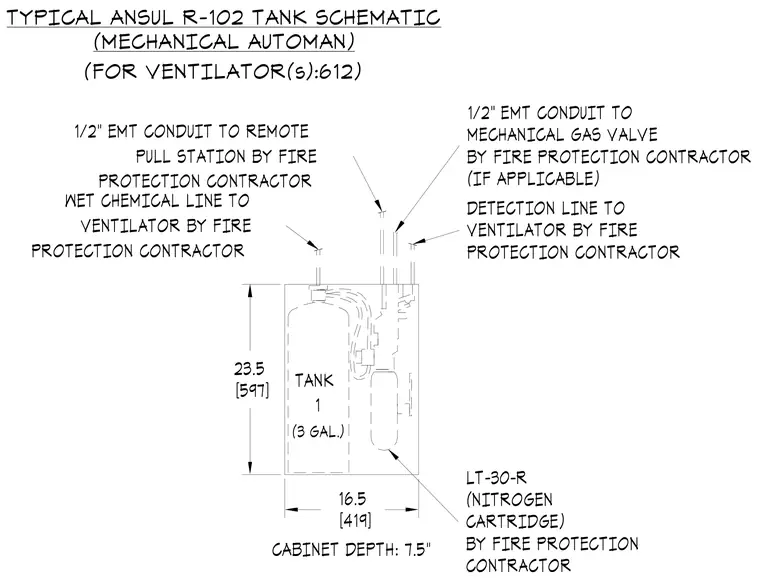

An Ansul R-102 fire suppression system tank enclosure utilizing a mechanical Automan release connects in a typical layout. The cabinet measures 16.5 inches wide by 23.5 inches high with a depth of 7.5 inches, housing a three-gallon wet chemical tank and an LT-30-R nitrogen cartridge. The assembly connects via electrical metallic tubing conduit to a mechanical gas valve and a remote pull station, alongside detection and wet chemical lines routed to the ventilator by the fire protection contractor.
1/2" EMT CONDUIT TO MECHANICAL GAS VALVE BY FIRE PROTECTION CONTRACTOR (IF APPLICABLE) LT-30-R (NITROGEN CARTRIDGE) BY FIRE PROTECTION CONTRACTOR 1/2" EMT CONDUIT TO REMOTE PULL STATION BY FIRE PROTECTION CONTRACTOR 16.5 [419] CABINET DEPTH: 7.5" 23.5 [597] TANK 1 (3 GAL.) DETECTION LINE TO VENTILATOR BY FIRE PROTECTION CONTRACTOR WET CHEMICAL LINE TO VENTILATOR BY FIRE PROTECTION CONTRACTOR (FOR VENTILATOR(s):612) TYPICAL ANSUL R-102 TANK SCHEMATIC (MECHANICAL AUTOMAN)
