SIGA-CT1 Single Input Module Installation and Wiring

Materials

Elements

About this detail

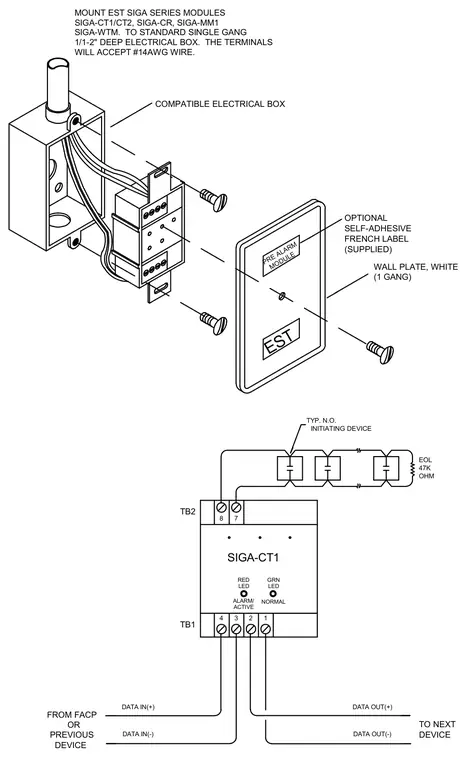

The SIGA-CT1 single input module mounts into a standard single-gang one-and-one-half-inch deep electrical box using two mounting screws. The module terminals accept number fourteen American Wire Gauge wire and connect to incoming data lines from the fire alarm control panel or previous device, outgoing data lines to the next device, and typical normally open initiating devices with a forty-seven kilohm end-of-line resistor. A white one-gang wall plate secures over the module using a center screw, with provisions for an optional self-adhesive French label.
