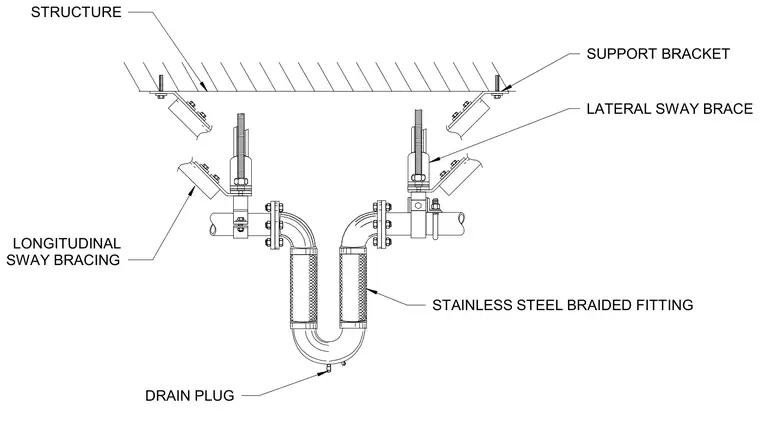

A seismic expansion loop is suspended from the overhead structure using support brackets anchored to the building. Lateral sway braces and longitudinal sway bracing stabilize the piping assembly against seismic movement. The flexible loop incorporates stainless steel braided fittings to accommodate differential movement and thermal expansion. A drain plug is located at the lowest point of the loop for system maintenance.
STRUCTURE SUPPORT BRACKET LATERAL SWAY BRACE LONGITUDINAL SWAY BRACING STAINLESS STEEL BRAIDED FITTING DRAIN PLUG
