Fire Alarm Relay Module Wiring Diagram

About this detail

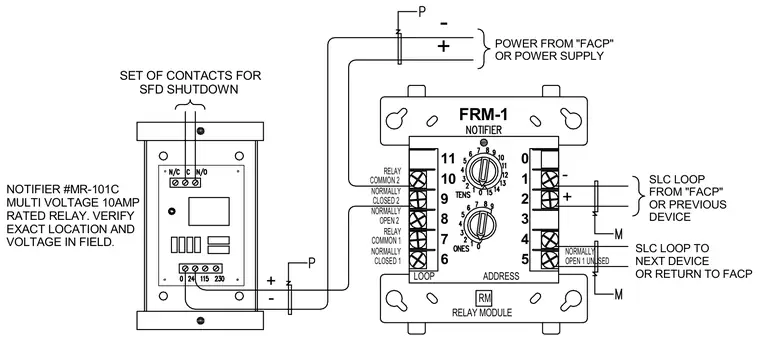

Wiring connections between a Notifier FRM-1 relay module and a Notifier MR-101C multi-voltage ten-amp rated relay for smoke fan damper shutdown are established. The signaling line circuit loop connects to the fire alarm control panel or previous device, continuing to the next device or returning to the panel. Power is supplied from the fire alarm control panel or a dedicated power supply. The relay module features rotary address dials and terminal connections for relay common, normally closed, and normally open contacts.
