Fire Protection · F-ABAHV

Fire Protection System Control and Alarm Schematic Diagram

About this detail

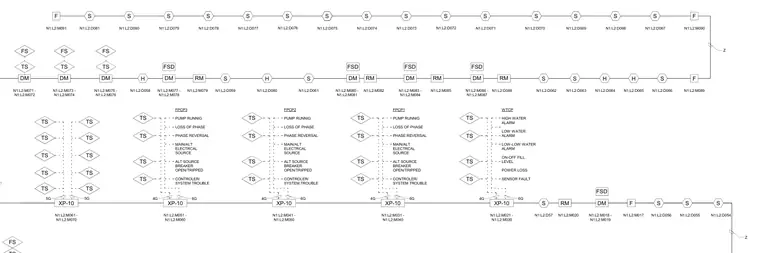

This schematic details fire protection control system monitoring points including fire pump controller statuses for FPCP1, FPCP2, and FPCP3 covering pump running, loss of phase, phase reversal, main and alternate electrical sources, breaker open or tripped, and system trouble conditions. Water tank control points for WTCP show high water alarm, low water alarm, low-low water alarm, on-off fill level, power loss, and sensor fault. Node identifiers such as N1:L2:M018 through N1:L2:M091 and associated device loops link the monitoring blocks to fire protection panel hardware. Diamond and hexagonal symbol callouts designate system status flags, fault monitoring, and device nodes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
