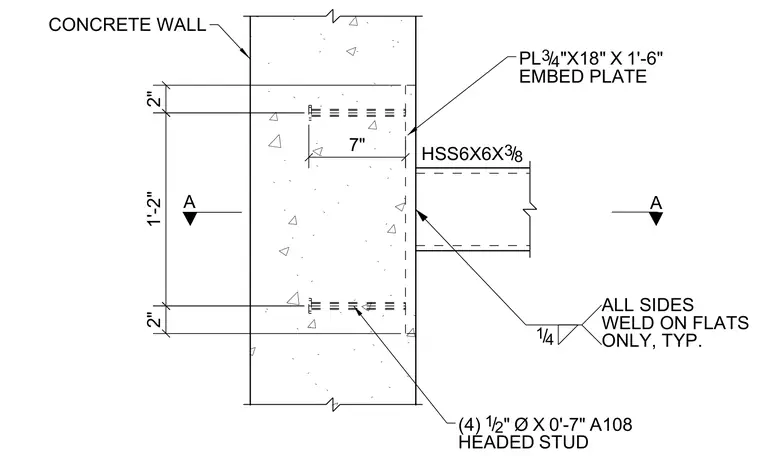

An HSS6x6x3/8 structural steel member connects to a concrete wall via a three-quarter-inch by eighteen-inch by one-foot six-inch steel embed plate. Four half-inch diameter by seven-inch long ASTM A108 headed studs anchor the embed plate into the concrete wall. A quarter-inch fillet weld secures the HSS member to the embed plate on all flat sides typically, with welds omitted at the corner radii.
7" 2" 1'-2" 2" A A CONCRETE WALL (4) 1 2 / " Ø X 0'-7" A108 HEADED STUD PL 3 4 / "X18" X 1'-6" EMBED PLATE 14 / ALL SIDES WELD ON FLATS ONLY, TYP. HSS6X6X 3 8 /
