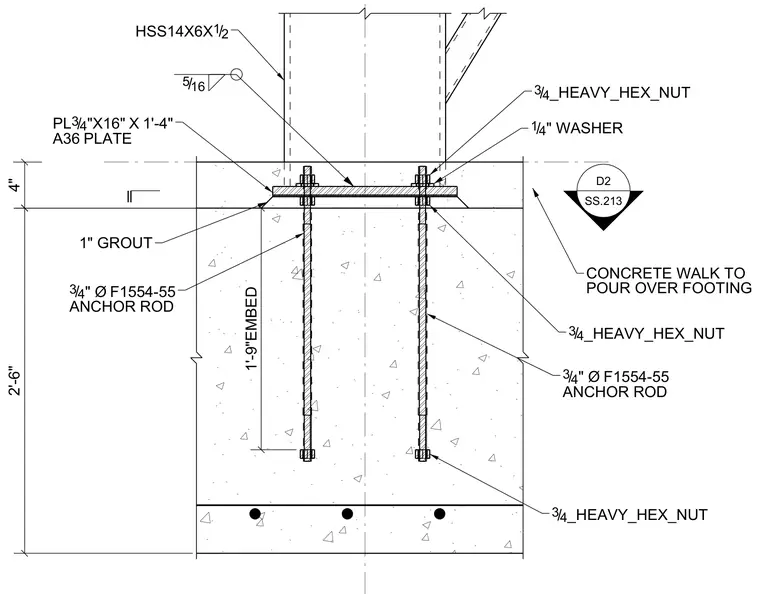

An HSS14x6x1/2 hollow structural section column bears on a 3/4 inch by 16 inch by 1'-4" A36 steel baseplate over a 1 inch grout layer. The baseplate is anchored to a concrete footing using three-quarter inch diameter ASTM F1554-55 anchor rods with a 1'-9" embedment length, secured with heavy hex nuts and washers. A concrete walk is detailed to pour over the footing.
D2 SS.213 34 / " Ø F1554-55 ANCHOR ROD 34 / _HEAVY_HEX_NUT 1" GROUT PL 3 4 / "X16" X 1'-4" A36 PLATE HSS14X6X 1 2 / 34 / " Ø F1554-55 ANCHOR ROD 2'-6" 4" 1'-9"EMBED CONCRETE WALK TO POUR OVER FOOTING 516 / 14 / " WASHER 34 / _HEAVY_HEX_NUT 34 / _HEAVY_HEX_NUT
