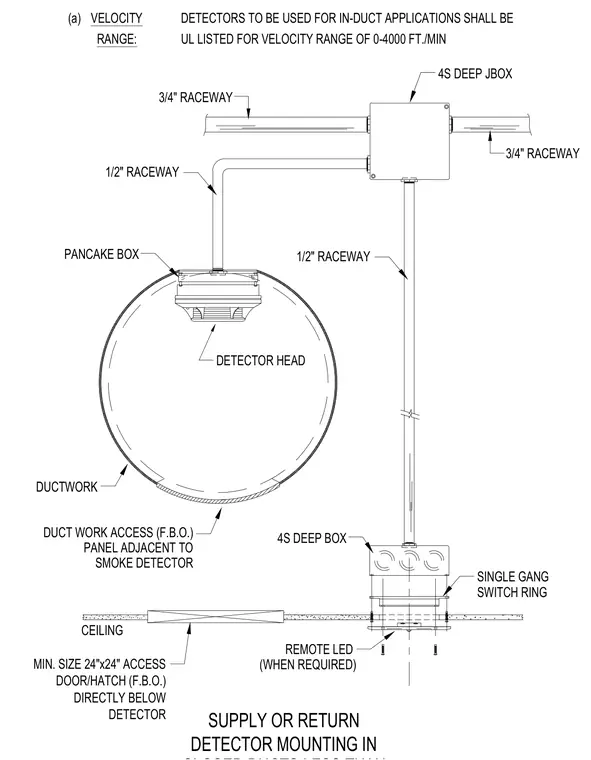

An in-duct smoke detector head mounts directly onto the ductwork with a pancake box, connected via raceways to a 4S deep junction box above and a 4S deep box with a single gang switch ring and remote LED below the ceiling. In-duct detectors are UL listed for a velocity range of zero to four thousand feet per minute. Ductwork requires an access panel adjacent to the smoke detector, and a minimum twenty-four by twenty-four inch access door or hatch is provided in the ceiling directly below the detector.
DETECTORS TO BE USED FOR IN-DUCT APPLICATIONS SHALL BE UL LISTED FOR VELOCITY RANGE OF 0-4000 FT./MIN DETECTOR MOUNTING IN SUPPLY OR RETURN MIN. SIZE 24"x24" ACCESS DIRECTLY BELOW DOOR/HATCH (F.B.O.) DETECTOR CEILING PANEL ADJACENT TO DUCT WORK ACCESS (F.B.O.) SMOKE DETECTOR (a) RANGE: VELOCITY 4S DEEP JBOX SINGLE GANG SWITCH RING 3/4" RACEWAY PANCAKE BOX DUCTWORK DETECTOR HEAD REMOTE LED (WHEN REQUIRED) 4S DEEP BOX 3/4" RACEWAY 1/2" RACEWAY 1/2" RACEWAY
