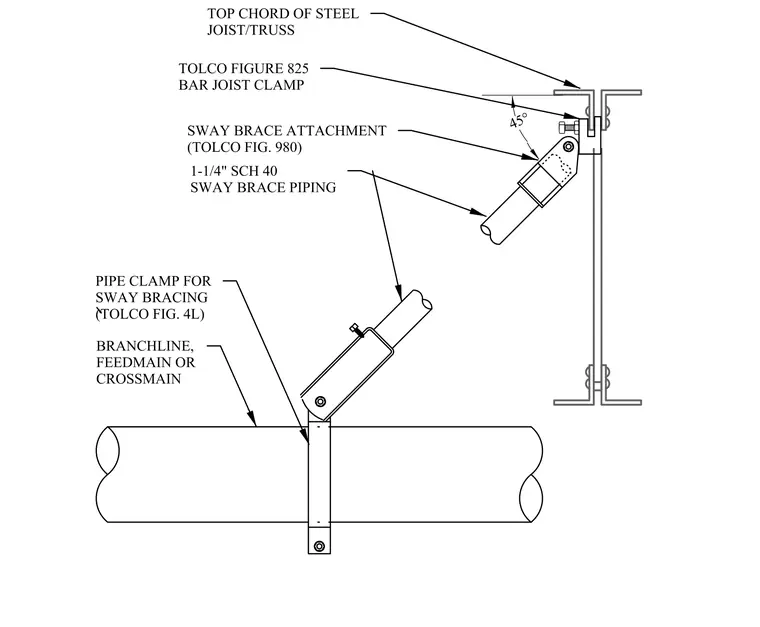

A Tolco Figure 825 bar joist clamp fastens to the top chord of a steel bar joist or truss to anchor the assembly. A Tolco Figure 980 sway brace attachment connects to the joist clamp at a 45-degree angle. A 1-1/4-inch Schedule 40 sway brace piping extends down to secure the fire protection piping. A Tolco Figure 4L pipe clamp attaches the brace piping to the branchline, feedmain, or crossmain.
JOIST/TRUSS TOP CHORD OF STEEL BAR JOIST CLAMP TOLCO FIGURE 825 (TOLCO FIG. 980) SWAY BRACE ATTACHMENT SWAY BRACE PIPING 1-1/4" SCH 40 (TOLCO FIG. 4L) SWAY BRACING PIPE CLAMP FOR CROSSMAIN FEEDMAIN OR BRANCHLINE,
