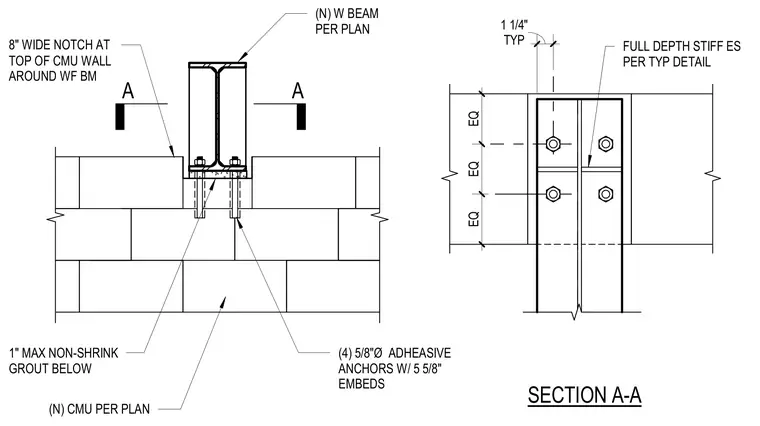

A new wide flange beam is supported on top of a concrete masonry unit wall inside an eight-inch wide notch. A one-inch maximum layer of non-shrink grout sits below the beam bearing plate. Four five-eighths-inch diameter adhesive anchors with five-and-five-eighths-inch embeds secure the assembly. Full depth stiffeners are placed at equal spacings per the typical detail.
A A (N) W BEAM PER PLAN 8" WIDE NOTCH AT TOP OF CMU WALL AROUND WF BM 1" MAX NON-SHRINK GROUT BELOW (N) CMU PER PLAN (4) 5/8"Ø ADHEASIVE ANCHORS W/ 5 5/8" EMBEDS EQ EQ EQ TYP 1 1/4" SECTION A-A FULL DEPTH STIFF ES PER TYP DETAIL
