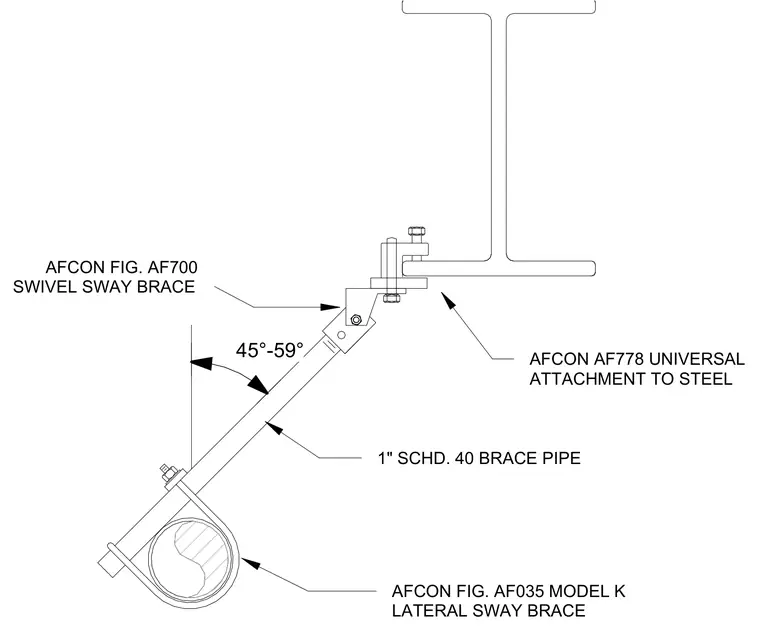

An Afcon AF778 universal attachment clamps directly to the bottom flange of a structural steel beam. An Afcon figure AF700 swivel sway brace connects to the universal attachment and receives a one-inch Schedule 40 brace pipe set at an angle between 45 and 59 degrees. An Afcon figure AF035 Model K lateral sway brace secures the pipe to the fire protection system piping. This assembly resists seismic and lateral loads on fire sprinkler piping systems.
AFCON AF778 UNIVERSAL ATTACHMENT TO STEEL 1" SCHD. 40 BRACE PIPE AFCON FIG. AF700 SWIVEL SWAY BRACE AFCON FIG. AF035 MODEL K LATERAL SWAY BRACE 45°-59°
