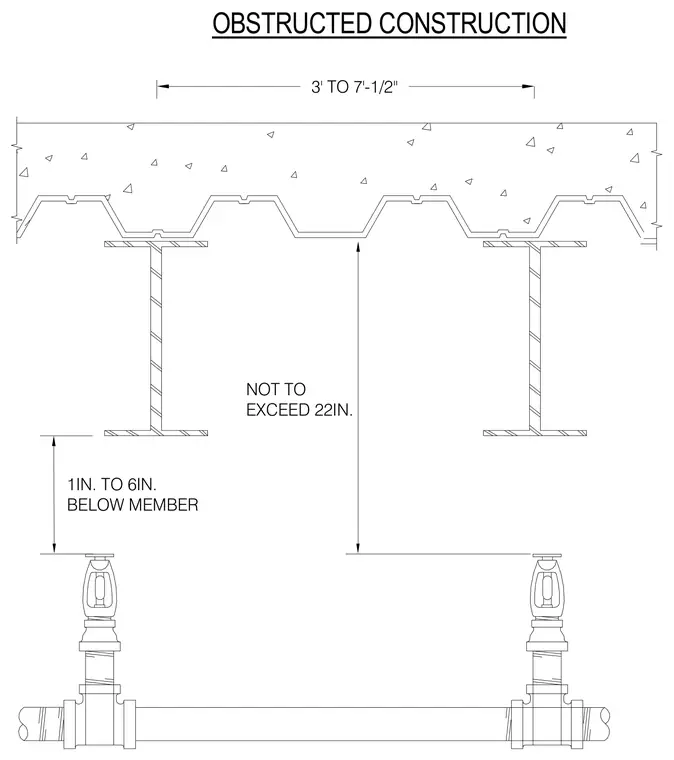

Fire sprinkler heads are positioned between one to six inches below the structural members, with a maximum vertical distance of twenty-two inches to the underside of the concrete-filled metal deck. The horizontal spacing between sprinkler heads ranges from three feet to seven and one-half feet under obstructed construction conditions.
3' TO 7'-1/2" NOT TO EXCEED 22IN. 1IN. TO 6IN. BELOW MEMBER OBSTRUCTED CONSTRUCTION
