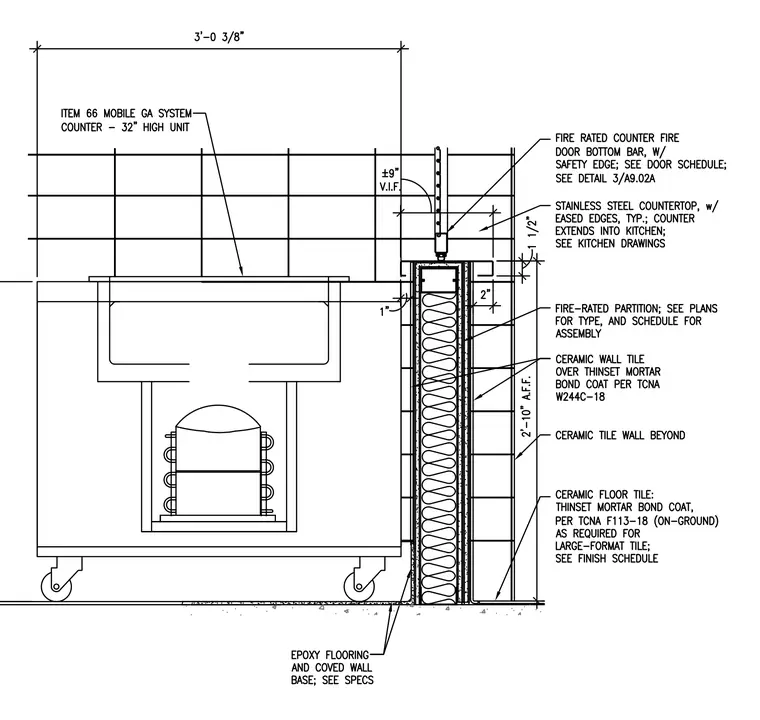

A mobile ga system counter 32 inches high unit positioned adjacent to a fire-rated partition. A fire rated counter fire door bottom bar with safety edge is integrated above the partition, with dimensions indicating a vertical clearance of approximately nine inches verified in field. A stainless steel countertop with eased edges extends into the kitchen, supported by the partition. The wall features ceramic wall tile over thinset mortar bond coat per TCNA W244C-18, and ceramic floor tile over thinset mortar bond coat per TCNA F113-18 with epoxy flooring and coved wall base at the floor junction.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
