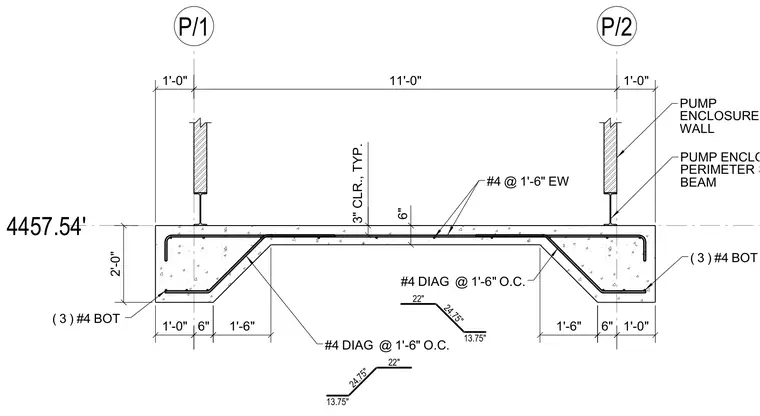

This structural section details the perimeter support beam and reinforced concrete slab for a pump enclosure. The assembly features a concrete slab with a depth of two feet at the thickened edges and six inches at the center. Reinforcement includes three number four bottom bars at each edge, number four bars at one foot six inches each way, and diagonal number four bars spaced at one foot six inches on center. Pump enclosure perimeter support beams rest on the concrete slab, supporting the pump enclosure walls above. Clear cover is maintained at three inches typical.
P/1 P/2 4457.54' 6" 3" CLR., TYP. 1'-0" 11'-0" 1'-0" PUMP ENCLOSURE WALL PUMP ENCLOSURE PERIMETER SUPPORT BEAM #4 @ 1'-6" EW ( 3 ) #4 BOT ( 3 ) #4 BOT #4 DIAG @ 1'-6" O.C. 13.75" 24.75" 22" #4 DIAG @ 1'-6" O.C. 13.75" 24.75" 22" 1'-0" 1'-6" 6" 2'-0" 1'-6" 1'-0" 6"
