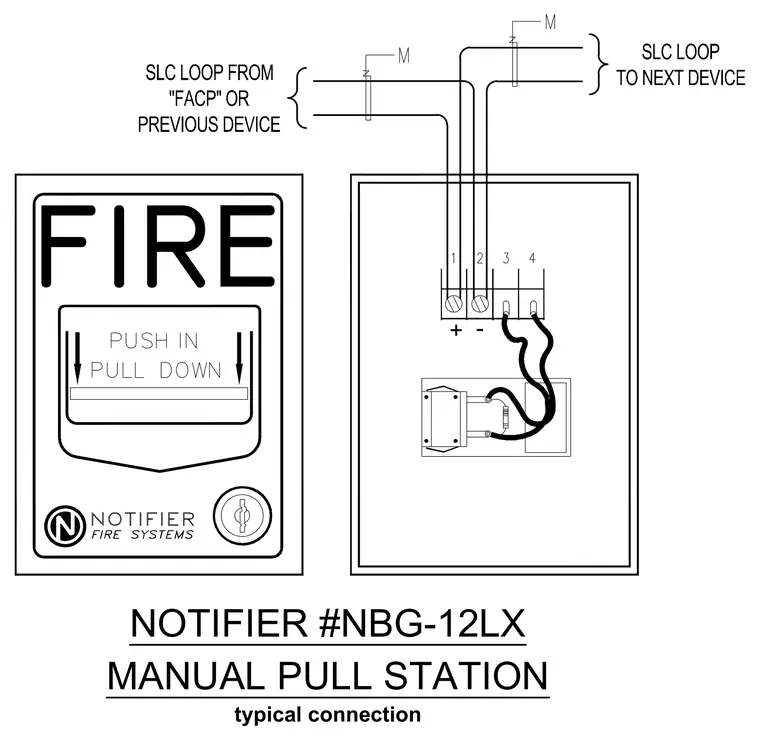

The Notifier NBG-12LX manual fire alarm pull station connects to the signaling line circuit loop with wiring running from the fire alarm control panel or previous device. The incoming and outgoing loop conductors interface with the numbered terminal block connections labeled positive and negative. Monitoring lines run through the system to maintain the addressable circuit continuity to the next device.
FIRE + - NOTIFIER #NBG-12LX MANUAL PULL STATION typical connection SLC LOOP TO NEXT DEVICE SLC LOOP FROM "FACP" OR PREVIOUS DEVICE
