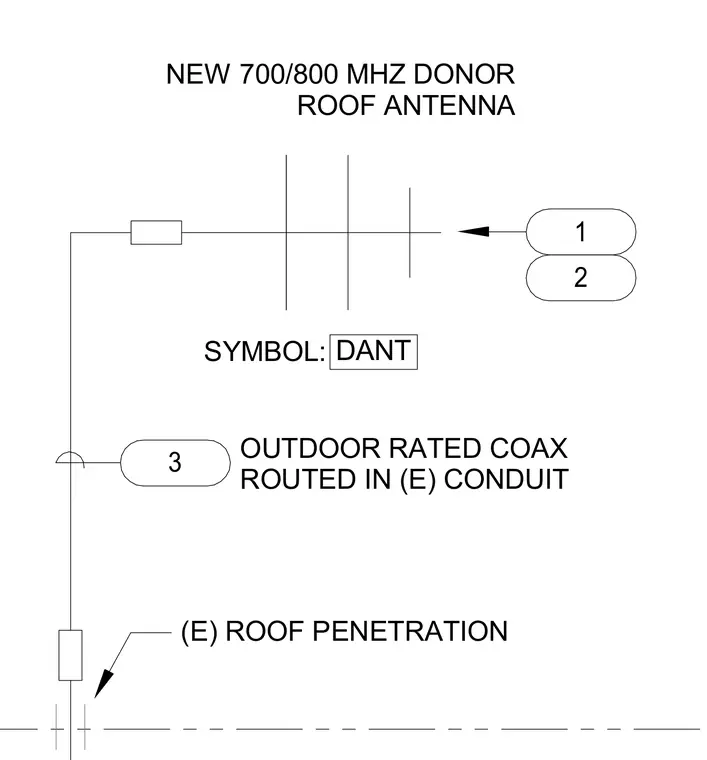

An outdoor-rated coaxial cable runs from a new 700/800 MHz donor roof antenna through an existing conduit. The cable assembly routes down to an existing roof penetration. The drawing designates the antenna symbol as DANT.
(E) ROOF PENETRATION SYMBOL: OUTDOOR RATED COAX ROUTED IN (E) CONDUIT NEW 700/800 MHZ DONOR ROOF ANTENNA DANT 1 2 3
