F-7WA9Z — Fiber Tray and Vertical Wire Manager Detail

Telecommunications · F-7WA9Z

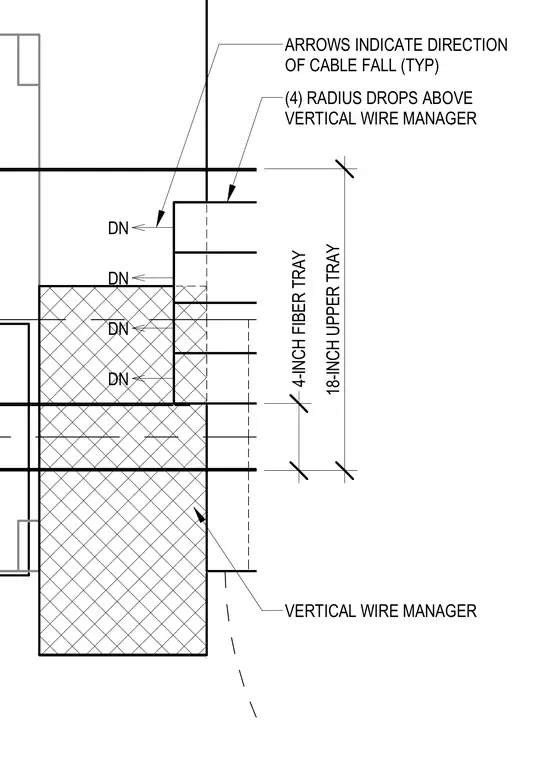

Fiber Tray and Vertical Wire Manager Detail

About this detail

An eighteen-inch upper tray aligns above a four-inch fiber tray adjacent to a vertical wire manager. Four radius drops mount above the vertical wire manager to guide cables downward. Arrows indicate the typical direction of cable fall for downward routing paths.

18-INCH UPPER TRAY 4-INCH FIBER TRAY DN DN DN DN (4) RADIUS DROPS ABOVE VERTICAL WIRE MANAGER VERTICAL WIRE MANAGER ARROWS INDICATE DIRECTION OF CABLE FALL (TYP)

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
