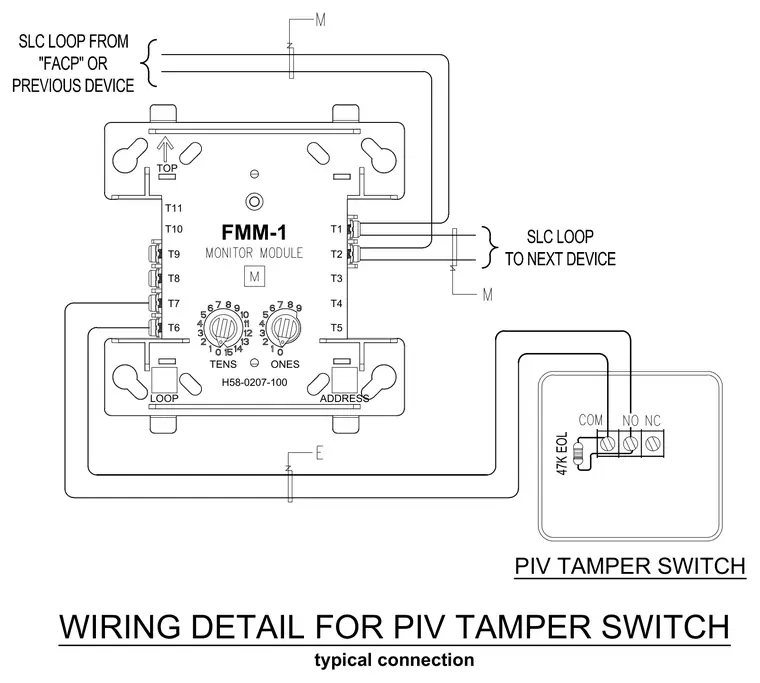

The signaling line circuit loop connects from the fire alarm control panel or previous device to terminals T1 and T2 of the FMM-1 monitor module, continuing from terminals T3 and T4 to the next device. A 47K end-of-line resistor is wired across the common and normally closed terminals of the post indicator valve tamper switch. Conductors run from the switch terminals to terminals T6 and T7 on the monitor module. Rotary address switches on the module are set to the designated loop address.
47K EOL PIV TAMPER SWITCH FMM-1 T11 T9 T8 T7 T6 T10 T1 T2 T3 T4 T5 LOOP ADDRESS H58-0207-100 TENS ONES TOP WIRING DETAIL FOR PIV TAMPER SWITCH typical connection SLC LOOP FROM "FACP" OR PREVIOUS DEVICE SLC LOOP TO NEXT DEVICE
