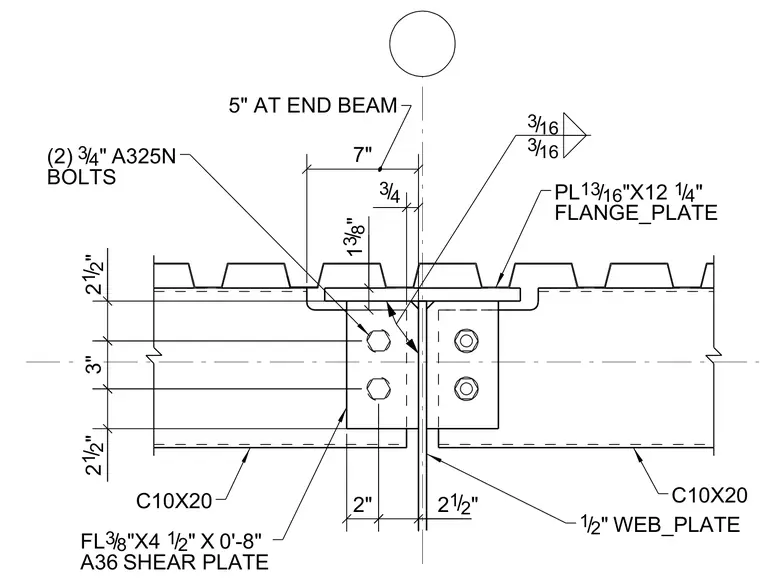

This connection joins two C10X20 steel channel beams using a half-inch A36 web plate and a thirteen-sixteenths by twelve and a quarter inch flange plate. The web connection utilizes two three-quarter inch A325N bolts on each side. A three-sixteenths inch fillet weld secures the flange plate. A five-inch clearance is maintained at the end of the beam.
316 / 316 / 2" 2 1 2 / " 2 12 / " 3" 2 12 / " 34 / 7" 1 38 / " FL 3 8 / "X4 1 2 / " X 0'-8" A36 SHEAR PLATE 12 / " WEB_PLATE (2) 3 4 / " A325N BOLTS PL 13 16 / "X12 1 4 / " FLANGE_PLATE C10X20 C10X20 5" AT END BEAM
