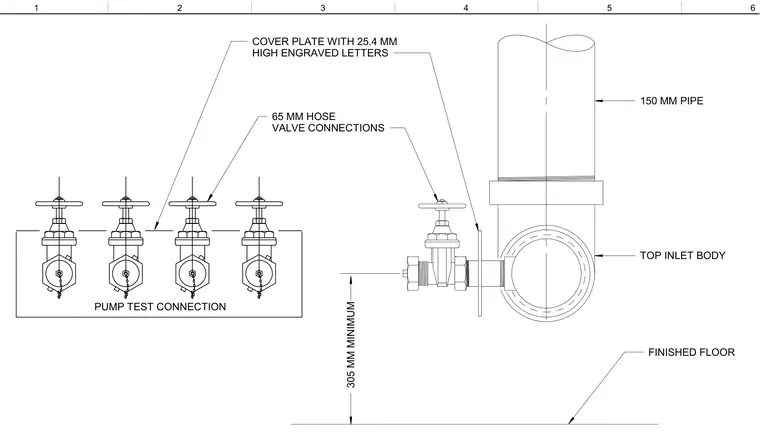

The assembly consists of a 150 mm main pipe connecting to a top inlet body with multiple 65 mm hose valve connections. A cover plate features 25.4 mm high engraved letters. The entire valve manifold maintains a minimum clearance of 305 mm above the finished floor.
COVER PLATE WITH 25.4 MM HIGH ENGRAVED LETTERS 65 MM HOSE VALVE CONNECTIONS 305 MM MINIMUM FINISHED FLOOR TOP INLET BODY 150 MM PIPE PUMP TEST CONNECTION 1 2 3 4 5 6
