Fire Protection · F-74M25

Duct Detector Diagram

About this detail

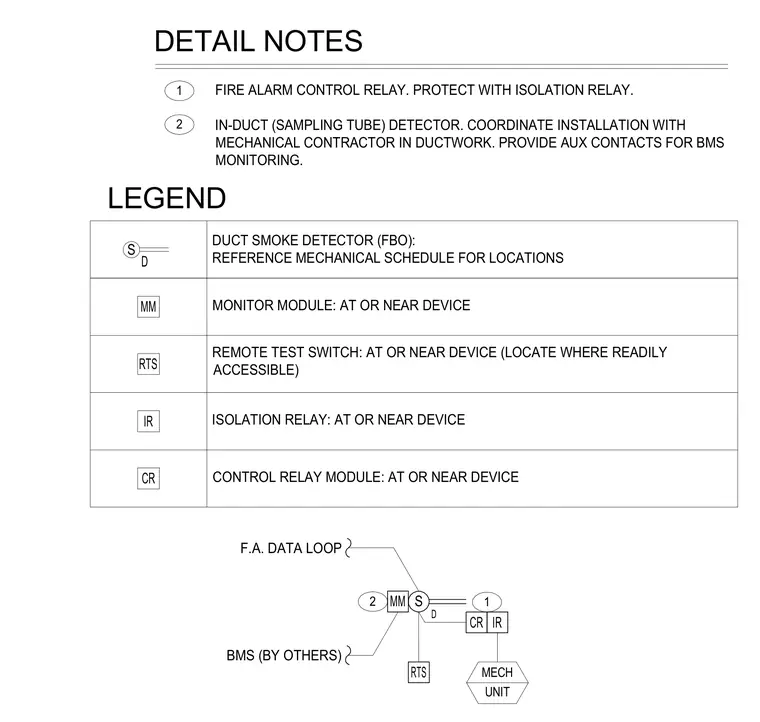

Duct smoke detector installation diagram showing the connection of the duct smoke detector with a monitor module, remote test switch, isolation relay, and control relay module. The duct smoke detector is furnished by others and referenced from the mechanical schedule for locations. The monitor module connects to the fire alarm data loop, and auxiliary contacts provide monitoring for the building management system. The remote test switch, isolation relay, and control relay module are positioned at or near the device.
