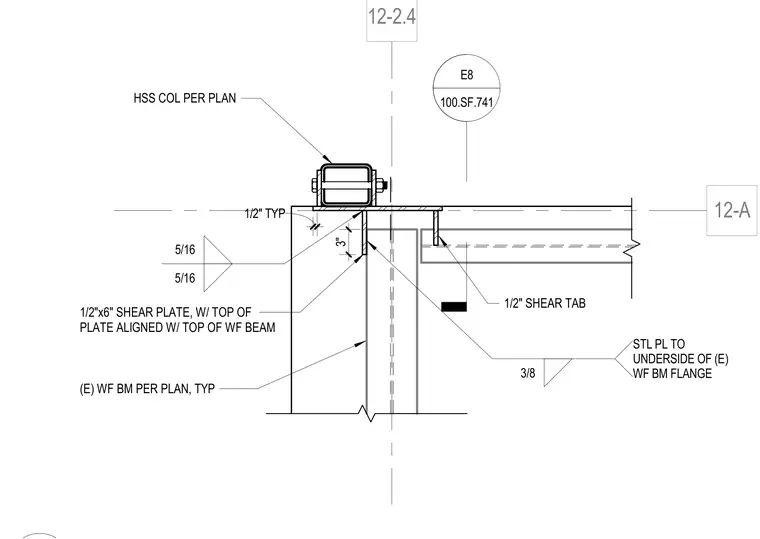

An existing wide flange beam connects to a hollow structural section column sized per plan via a three-eighths-inch steel plate welded to the underside of the wide flange beam flange. A one-half-inch by six-inch shear plate aligns its top edge flush with the top of the wide flange beam and fastens with five-sixteenths-inch fillet welds. A one-half-inch shear tab welded to the assembly connects back to the structural framework. The hollow structural section column sits above the assembly with typical one-half-inch clearances.
12-A 12-2.4 1/2" TYP HSS COL PER PLAN 3" 5/16 5/16 3/8 STL PL TO UNDERSIDE OF (E) WF BM FLANGE 1/2" SHEAR TAB E8 100.SF.741 (E) WF BM PER PLAN, TYP 1/2"x6" SHEAR PLATE, W/ TOP OF PLATE ALIGNED W/ TOP OF WF BEAM
