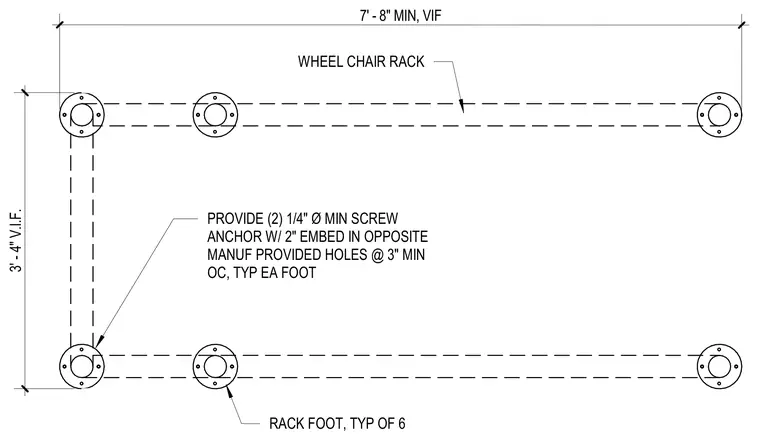

Each of the six rack feet is anchored with two minimum one-quarter inch diameter screw anchors with two-inch embedment into opposite manufacturer-provided holes at three inches minimum on center. The overall rack layout dimensions are approximately seven feet eight inches by three feet four inches, verify in field as required.
3' - 4" V.I.F. WHEEL CHAIR RACK RACK FOOT, TYP OF 6 PROVIDE (2) 1/4" Ø MIN SCREW ANCHOR W/ 2" EMBED IN OPPOSITE MANUF PROVIDED HOLES @ 3" MIN OC, TYP EA FOOT 7' - 8" MIN, VIF
