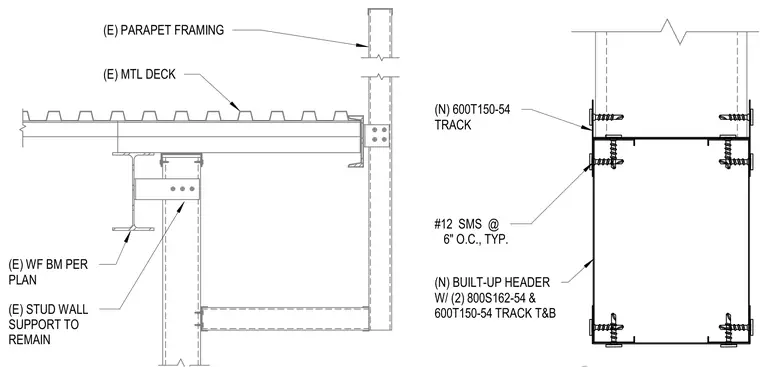

An existing wide-flange beam supports a metal deck and existing stud wall framing with an attached stud wall support. New parapet framing connects to the assembly using a new 600T150-54 track and a built-up header composed of two 800S162-54 studs and top and bottom track members. The built-up header components are fastened together using number 12 self-drilling sheet metal screws spaced at six inches on center typically.
(E) STUD WALL SUPPORT TO REMAIN (E) WF BM PER PLAN (E) MTL DECK (E) PARAPET FRAMING (N) 600T150-54 TRACK (N) BUILT-UP HEADER W/ (2) 800S162-54 & 600T150-54 TRACK T&B #12 SMS @ 6" O.C., TYP.
