Fire Protection · F-5MYD6

Shown On Plan As

Materials

Steel

Elements

Beams

Connections

Bolted Connection

About this detail

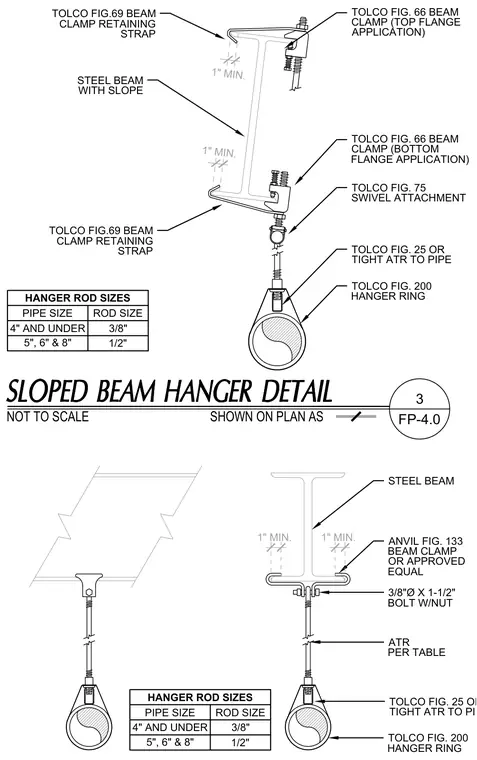

Fire protection pipe hanger assemblies are suspended from structural steel beams. The upper configuration utilizes Tolco Figure 66 beam clamps on both top and bottom flanges of a sloped steel beam, combined with Tolco Figure 69 beam clamp retaining straps, a Tolco Figure 75 swivel attachment, all-thread rod sized per the schedule, a Tolco Figure 25 or tight all-thread rod to pipe connection, and a Tolco Figure 200 hanger ring. An alternative configuration features a standard steel beam with an Anvil Figure 133 beam clamp secured by a three-eighths-inch diameter by one-and-a-half-inch bolt with nut. A hanger rod size schedule specifies three-eighths-inch rods for pipes four inches and under, and one-half-inch rods for five-inch, six-inch, and eight-inch pipes.
