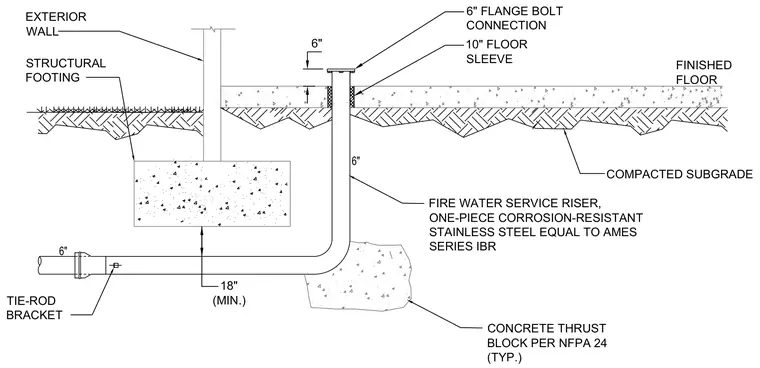

A six-inch fire water service riser made of one-piece corrosion-resistant stainless steel extends up through a ten-inch floor sleeve in the concrete slab. The horizontal run features a tie-rod bracket and is supported by a concrete thrust block placed on compacted subgrade per NFPA 24 standards. The vertical pipe terminates above the finished floor with a six-inch flange bolt connection and maintains an eighteen-inch minimum clearance from the structural footing beneath the exterior wall.
6" 6" COMPACTED SUBGRADE CONCRETE THRUST BLOCK PER NFPA 24 (TYP.) STRUCTURAL FOOTING FIRE WATER SERVICE RISER, ONE-PIECE CORROSION-RESISTANT STAINLESS STEEL EQUAL TO AMES SERIES IBR 6" FLANGE BOLT CONNECTION TIE-ROD BRACKET 18" (MIN.) 10" FLOOR SLEEVE FINISHED FLOOR 6" EXTERIOR WALL
