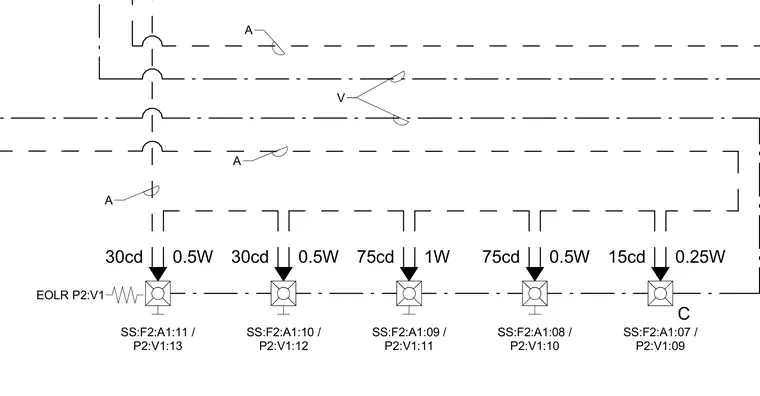

A notification appliance circuit connects to multiple audio-visual devices with varying candela and wattage ratings ranging from 15cd to 75cd and 0.25W to 1W. Each device is labeled with specific circuit addresses such as SS:F2:A1:07 through SS:F2:A1:11 and corresponding point designations. An end-of-line resistor is terminated at the end of the circuit loop.
C 15cd 0.25W 75cd 0.5W 75cd 1W 30cd 0.5W 30cd 0.5W SS:F2:A1:07 / P2:V1:09 SS:F2:A1:08 / P2:V1:10 SS:F2:A1:09 / P2:V1:11 SS:F2:A1:10 / P2:V1:12 SS:F2:A1:11 / P2:V1:13 EOLR P2:V1 V A A A
