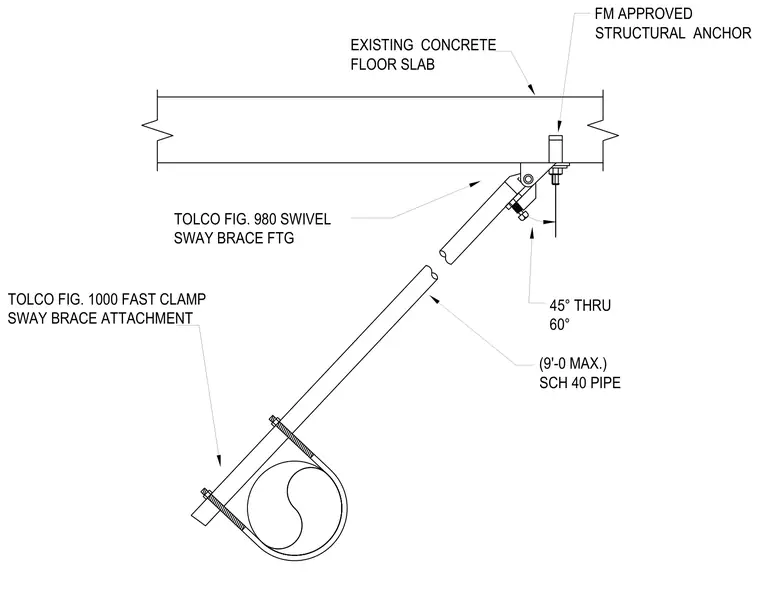

A Schedule 40 pipe connects to an existing concrete floor slab using a Tolco Fig. 1000 fast clamp sway brace attachment and a Tolco Fig. 980 swivel sway brace fitting. An FM approved structural anchor secures the sway brace fitting to the underside of the slab. The brace is installed at an angle between 45 degrees and 60 degrees with a maximum length of 9 feet zero inches.
EXISTING CONCRETE FLOOR SLAB 45° THRU 60° (9'-0 MAX.) SCH 40 PIPE TOLCO FIG. 1000 FAST CLAMP SWAY BRACE ATTACHMENT TOLCO FIG. 980 SWIVEL SWAY BRACE FTG FM APPROVED STRUCTURAL ANCHOR
