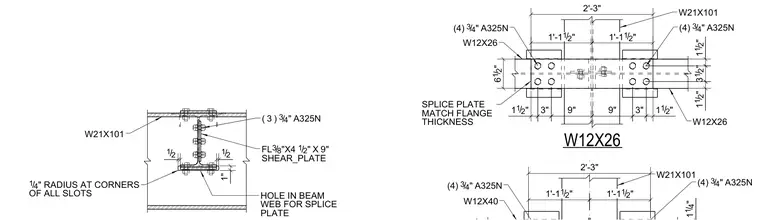

A beam splice connection joins W12 and W21 steel members using bolted splice and shear plates. The connection features three three-quarter-inch A325N bolts securing a three-eighths-inch by four-and-a-half-inch by nine-inch shear plate at the beam web, alongside flange splice plates matching the flange thickness fastened with groups of four three-quarter-inch A325N bolts. The beam web includes slotted holes with one-quarter-inch radiused corners to accommodate the splice configuration.
1" 12 / 12 / 14 / " RADIUS AT CORNERS OF ALL SLOTS HOLE IN BEAM WEB FOR SPLICE PLATE ( 3 ) 3 4 / " A325N W21X101 FL 3 8 / "X4 1 2 / " X 9" SHEAR_PLATE 2'-3" 1'-1 1 2 / " 1'-1 1 2 / " (4) 3 4 / " A325N (4) 3 4 / " A325N W12X40 W21X101 1 14 / " 2'-3" 9" 1 1 2 / " 1 12 / " 3 12 / " 1 12 / " 1'-1 1 2 / " 1'-1 1 2 / " 6 12 / " SPLICE PLATE MATCH FLANGE THICKNESS W12X26 (4) 3 4 / " A325N (4) 3 4 / " A325N W12X26 W12X26 W21X101 1 1 2 / " 3" 9" 3"
