Structural · F-5BQFT

Pipe Anchor Connection to HSS Pipe Rack

Materials

Elements

About this detail

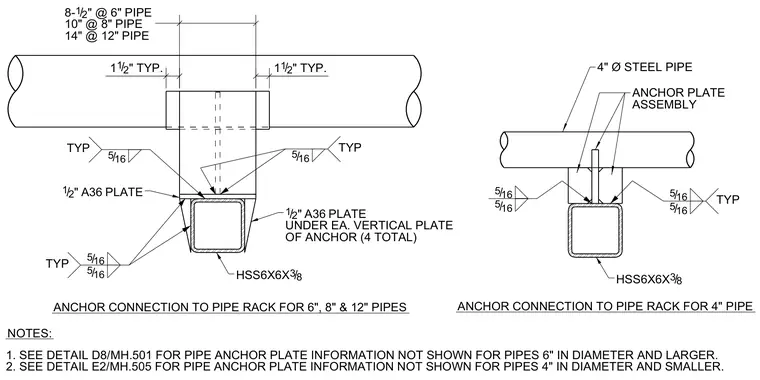

Steel pipes connect to a hollow structural section pipe rack using welded anchor plate assemblies. For six, eight, and twelve inch pipes, a vertical plate assembly is welded with five-sixteenth inch typical fillet welds to a half-inch A36 base plate resting on the hollow structural section, supplemented by four half-inch A36 vertical plates underneath. For four-inch pipes, an anchor plate assembly connects directly to the hollow structural section with five-sixteenth inch typical fillet welds.
