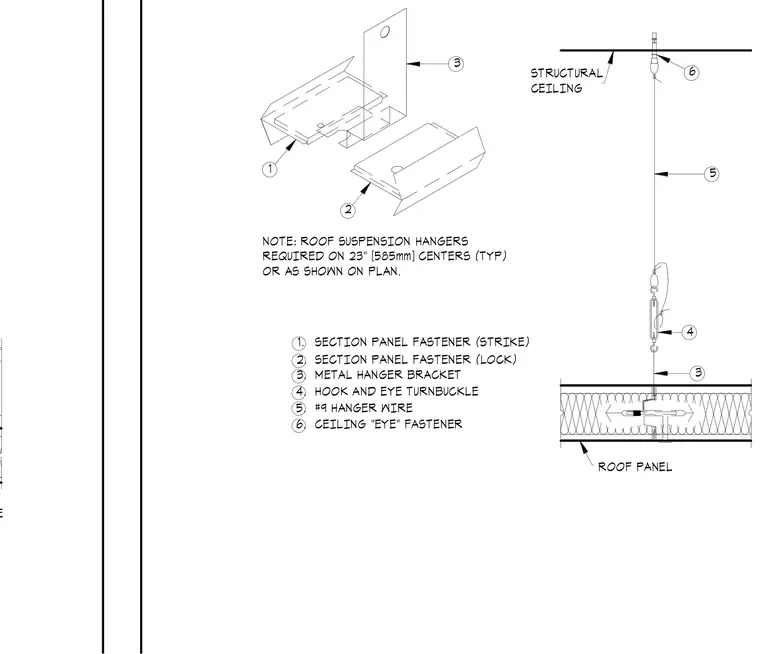

Roof panels are suspended from a structural ceiling using number nine hanger wires spaced on twenty-three inch centers typical. A ceiling eye fastener anchors the hanger wire to the structural ceiling above. A hook and eye turnbuckle allows vertical adjustment within the drop wire assembly. A metal hanger bracket connects the lower end of the wire to the roof panel fasteners, which include strike and lock components.
ROOF PANEL NOTE: ROOF SUSPENSION HANGERS REQUIRED ON 23" [585mm] CENTERS (TYP) OR AS SHOWN ON PLAN. SECTION PANEL FASTENER (STRIKE) SECTION PANEL FASTENER (LOCK) METAL HANGER BRACKET HOOK AND EYE TURNBUCKLE CEILING "EYE" FASTENER #9 HANGER WIRE 6. 5. 4. 3. 2. 1. 2 1 3 4 STRUCTURAL CEILING 3 5 6 GROOVE SIDE
