A vertical stud or post is anchored to a concrete flooring slab using a three-and-a-half inch diameter by ten gauge minimum flange foot. The assembly is secured against shear and uplift with one three-eighths inch stainless steel expansion anchor of type Hilti KB-TZ2 with a two-and-a-half inch embedment, installed per ICC-ES ESR-4266 with a torque test of thirty foot-pounds. A stainless steel cap nut trims the stud at the anchor location. Two number-ten self-tapping screws secure the post to the flange foot after final adjustment.

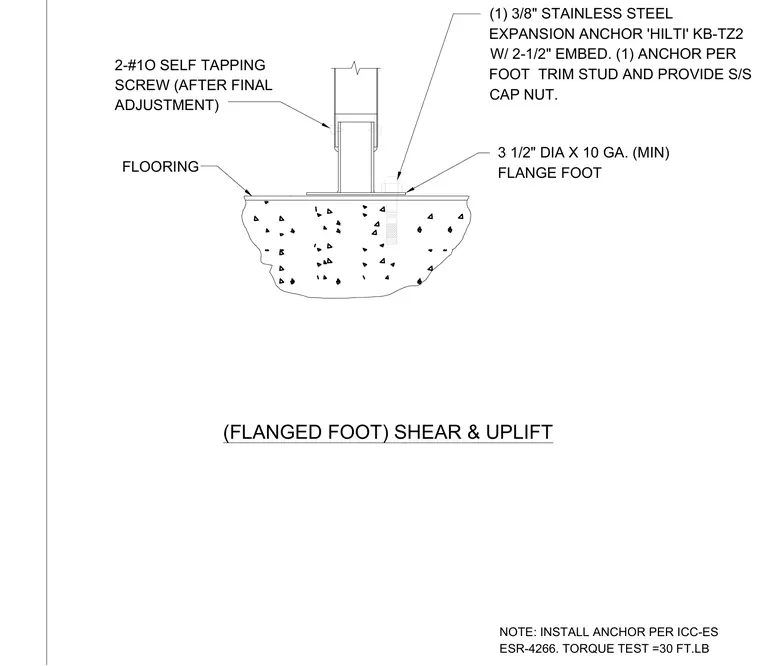

(FLANGED FOOT) SHEAR & UPLIFT FLOORING 3 1/2" DIA X 10 GA. (MIN) FLANGE FOOT 2-#1O SELF TAPPING SCREW (AFTER FINAL ADJUSTMENT) NOTE: INSTALL ANCHOR PER ICC-ES ESR-4266. TORQUE TEST =30 FT.LB (1) 3/8" STAINLESS STEEL EXPANSION ANCHOR 'HILTI' KB-TZ2 W/ 2-1/2" EMBED. (1) ANCHOR PER FOOT TRIM STUD AND PROVIDE S/S CAP NUT.
