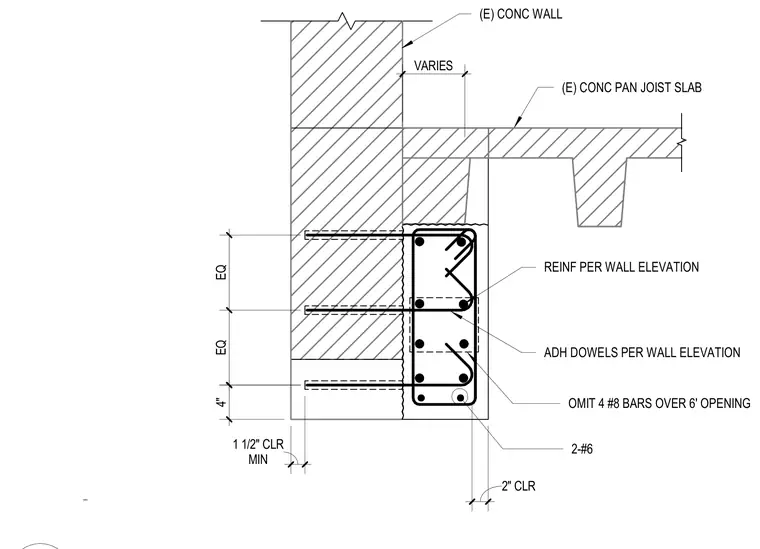

An existing concrete wall connects to a concrete pan joist slab with a reinforced concrete header spanning an opening. Adhesive dowels are installed per the wall elevation into the existing concrete wall. Additional reinforcement includes number eight bars omitted over a six-foot opening, number six bars, and vertical wall reinforcement spaced evenly with specified minimum clearances.
MIN 1 1/2" CLR 2" CLR EQ EQ 4" VARIES OMIT 4 #8 BARS OVER 6' OPENING 2-#6 REINF PER WALL ELEVATION (E) CONC PAN JOIST SLAB (E) CONC WALL ADH DOWELS PER WALL ELEVATION
