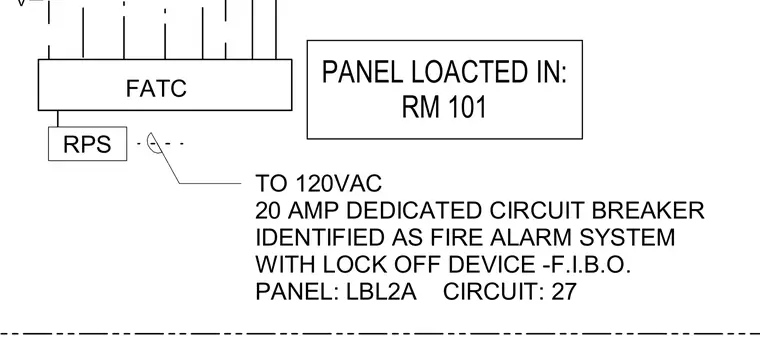

The fire alarm system connects to a one hundred twenty volt alternating current twenty amp dedicated circuit breaker. The circuit is identified as a fire alarm system with a lock off device and is designated as F.I.B.O. Power is routed from panel LBL2A on circuit twenty seven. The remote power supply and FATC unit are linked to this power source, with the panel located in room 101.
RPS FATC TO 120VAC 20 AMP DEDICATED CIRCUIT BREAKER IDENTIFIED AS FIRE ALARM SYSTEM WITH LOCK OFF DEVICE -F.I.B.O. PANEL: LBL2A CIRCUIT: 27 V PANEL LOACTED IN: RM 101
