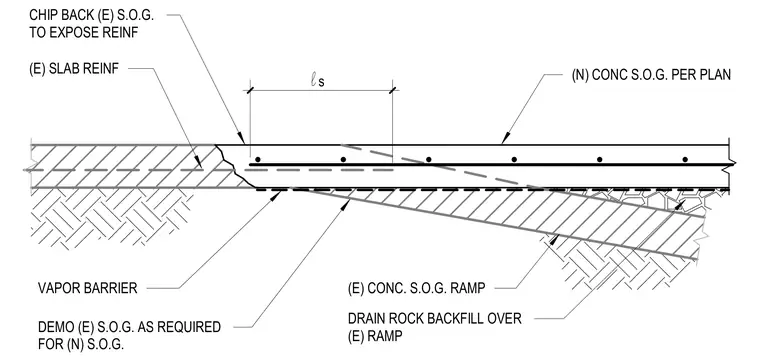

The existing concrete slab on grade is chipped back to expose the existing slab reinforcement for a specified lap length. A new concrete slab on grade is poured per plan over a vapor barrier, bearing on drain rock backfill over the existing ramp. The existing concrete slab on grade ramp is demolished as required to accommodate the new construction.
s l CHIP BACK (E) S.O.G. TO EXPOSE REINF (E) SLAB REINF (N) CONC S.O.G. PER PLAN VAPOR BARRIER DEMO (E) S.O.G. AS REQUIRED FOR (N) S.O.G. (E) CONC. S.O.G. RAMP DRAIN ROCK BACKFILL OVER (E) RAMP
