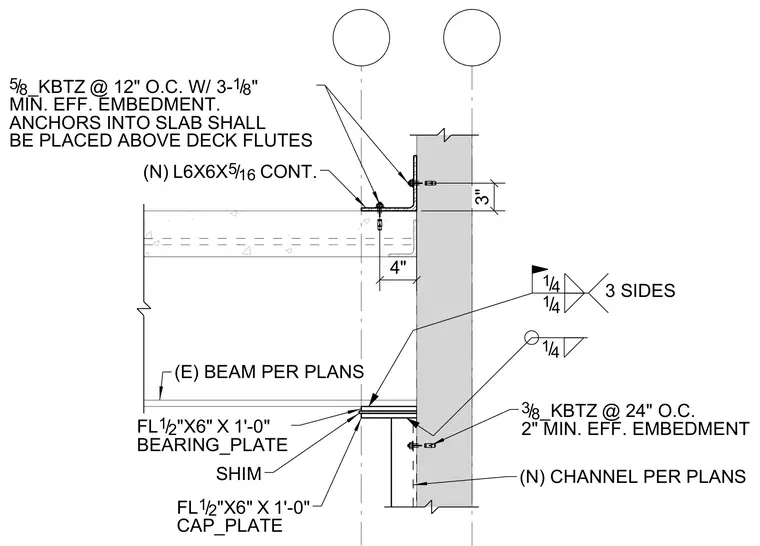

An existing beam rests upon a one-half inch by six-inch by one-foot cap plate and bearing plate assembly, with shims providing level adjustment and quarter-inch fillet welds securing the plates on three sides. A continuous new L6x6x5/16 angle connects to the slab above using five-eighths-inch anchors at twelve inches on center with three and one-eighth-inch minimum effective embedment, placed specifically above the deck flutes. A new channel profile fastens to the supporting vertical element using three-eighths-inch anchors at twenty-four inches on center with two-inch minimum effective embedment.
14 / 14 / 3 SIDES 14 / 3" 4" 38 / _KBTZ @ 24" O.C. 2" MIN. EFF. EMBEDMENT 58 / _KBTZ @ 12" O.C. W/ 3- 18 / " MIN. EFF. EMBEDMENT. ANCHORS INTO SLAB SHALL BE PLACED ABOVE DECK FLUTES FL 1 2 / "X6" X 1'-0" BEARING_PLATE SHIM FL 1 2 / "X6" X 1'-0" CAP_PLATE (N) L6X6X 5 16 / CONT. (N) CHANNEL PER PLANS (E) BEAM PER PLANS
