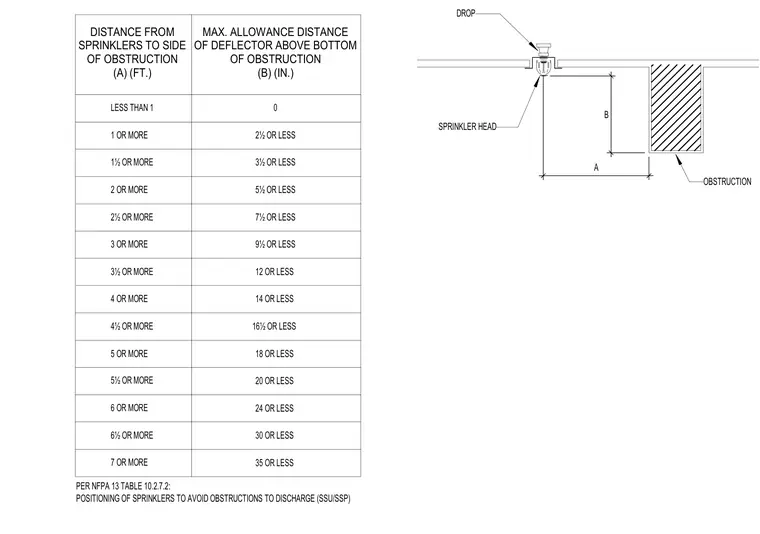

Drop sprinkler head positioning relative to structural obstructions is governed by the distance from the sprinklers to the side of the obstruction labeled as dimension A and the maximum allowance distance of the deflector above the bottom of the obstruction labeled as dimension B. The accompanying table provides code-compliant threshold values ranging from less than one foot horizontal distance allowing zero vertical clearance up to seven feet or more allowing thirty-five inches or less maximum allowance distance.
PER NFPA 13 TABLE 10.2.7.2: POSITIONING OF SPRINKLERS TO AVOID OBSTRUCTIONS TO DISCHARGE (SSU/SSP) DROP SPRINKLER HEAD OBSTRUCTION DISTANCE FROM SPRINKLERS TO SIDE OF OBSTRUCTION (A) (FT.) MAX. ALLOWANCE DISTANCE OF DEFLECTOR ABOVE BOTTOM OF OBSTRUCTION (B) (IN.) LESS THAN 1 1 OR MORE 1½ OR MORE 2 OR MORE 2½ OR MORE 3 OR MORE 3½ OR MORE 4 OR MORE 4½ OR MORE 5 OR MORE 5½ OR MORE 6 OR MORE 6½ OR MORE 7 OR MORE 0 2½ OR LESS 3½ OR LESS 5½ OR LESS 7½ OR LESS 9½ OR LESS 12 OR LESS 14 OR LESS 16½ OR LESS 18 OR LESS 20 OR LESS 24 OR LESS 30 OR LESS 35 OR LESS B A
