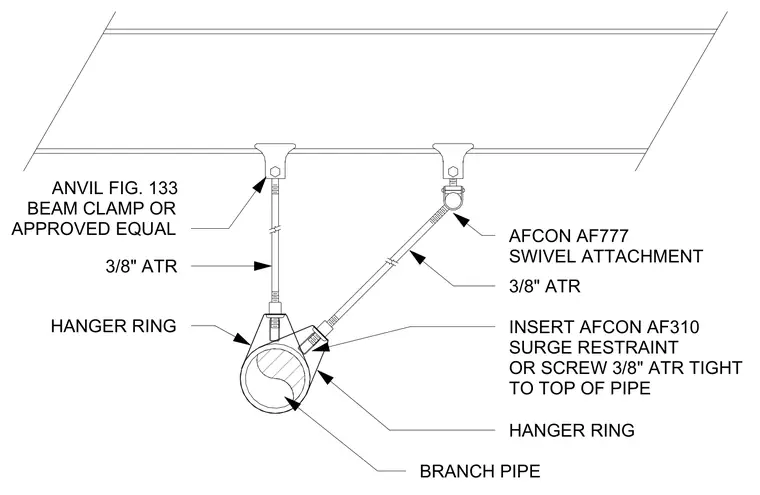

A branch pipe is suspended from an overhead structural steel beam using an Anvil Fig. 133 beam clamp or approved equal connected to a three-eighths-inch all-thread rod and a hanger ring. A lateral seismic surge restraint is integrated into the assembly using an Afcon AF310 surge restraint insert or screw, connected via a three-eighths-inch all-thread rod and an Afcon AF777 swivel attachment secured to a second overhead beam clamp.
BRANCH PIPE HANGER RING INSERT AFCON AF310 SURGE RESTRAINT OR SCREW 3/8" ATR TIGHT TO TOP OF PIPE 3/8" ATR AFCON AF777 SWIVEL ATTACHMENT 3/8" ATR ANVIL FIG. 133 BEAM CLAMP OR APPROVED EQUAL HANGER RING
